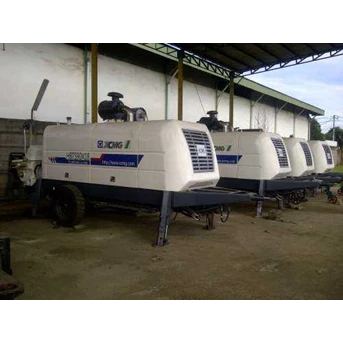

MAIN FEATURES : • Engine manufacturer : DEUTZ • Main pump manufacturer : REXROTH • High/ low pressure automatic switchover • The hydraulic integrated control technologi • Mature and reliable open-type pumping system • Two sets of lubricating system ( grease and lubricant oil) • Piston automatic return technique • Fully hydraulic direction change techique • Cleaning system with independent water tank • Well-equipped protection system • Engine rey automatic control system • Intelligent energy saving technique SPECIFICATIONS : Technical Parameter XCMG HBTS90x18 Theoretical output( low/ high pressure ( m3/ h) : 90/ 50 Theoretic pressure of concrete delivery ( Mpa) : 10/ 18 Delivery Cylinder bore x Stroke ( mm) : 200 x 1800 Main Cylinder bore x Stroke ( mm) : 150 x 1800 Engine power ( kw) : 195 Material feeding height ( mm) 1420 Theoretic maximum delivery Horizontal 800 distance ( m) ( ¦ 125mm) Vertical 200 Overall dimension length x width x height ( mm) : 6960 X 2100 X 2770 Total weight ( Kg) 7530 Automatic-switch between high and low pressure : Yes Automatic-recession of Concrete pump : Yes Hydraulic supporting-leg : Yes PAKET PIPA DELIVERY 120M
